Washdown Motor, 1-1/2 HP, Face Mounting MPN:113024.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608908

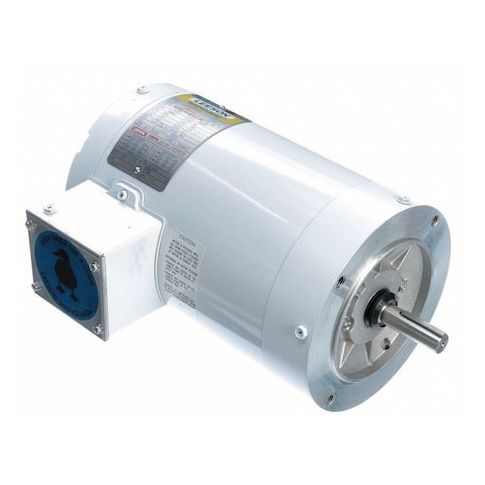

Washdown Motor, 1-1/2 HP, Face Mounting
This 1.5 HP washdown motor from Leeson is designed for heavy-duty applications in harsh environments, featuring a totally enclosed, non-ventilated design that protects against dust and water ingress. Suitable for use in food processing, pharmaceutical, and chemical manufacturing facilities, this motor operates at 3450 RPM and is rated for continuous duty. Its 56C frame and Class F insulation ensure reliable performance in temperatures up to 40°C. With a service factor of 1.15 and no thermal protection, this motor is ideal for applications requiring high horsepower and resistance to corrosion and moisture.
Top product features:
- Three-phase operation
- Totally enclosed non-ventilated enclosure
- Continuous duty cycle
Top product applications:
- Food Processing Equipment
- Industrial Laundry Equipment
- Automotive Wash Stations
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.8/1.9 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 10.90
- Package Height: 11.50
- Package Weight: 43.70
Product info last updated on February 28, 2026 4:32pm UTC
Category: Motors
