DC Permanent Magnet Motor, 56C MPN:108045.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608865

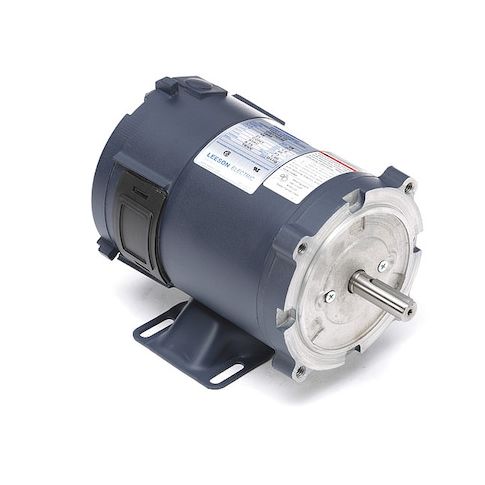

DC Permanent Magnet Motor, 56C
This DC Permanent Magnet Motor from Leeson is a reliable and efficient solution for various applications. With a 1/4 HP rating and 1,800 RPM, it's suitable for low-to-medium power requirements. The motor's compact design and totally enclosed nonventilated enclosure make it ideal for use in harsh environments. Its ball bearings and carbon brushes ensure smooth operation and long lifespan. Suitable for applications such as conveyor systems, pumps, and fans, this motor offers a cost-effective and space-saving solution. Its compact size and low power requirements make it an excellent choice for a wide range of industrial and commercial applications.
Top product features:
- Permanent Magnet DC motor design for efficient operation
- Totally Enclosed Nonventilated motor enclosure for protection from dust and debris
- Ball bearings for smooth and durable shaft rotation
Top product applications:
- Conveyor systems for small parts and materials
- Automotive applications such as window lifts and seat motors
- Small machinery and equipment like pumps and fans
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1/4 HP, Nameplate RPM 1,800 RPM, Voltage 12V DC, 21.0 A Full Load Amps, 56C Frame, Full Load Torque 8.8 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in, Brush Type Carbon
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 8.30
- Package Height: 11.70
- Package Weight: 19.90
