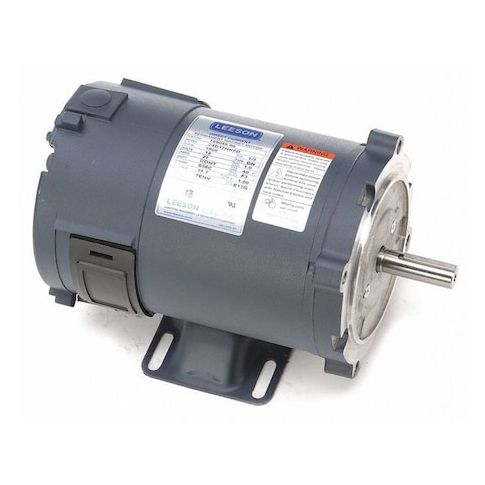

DC Permanent Magnet Motor, 27.0A, 1/3 HP MPN:108046.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608856
DC Permanent Magnet Motor, 27.0A, 1/3 HP
This 1/3 HP DC Permanent Magnet Motor from Leeson is a reliable and efficient choice for a variety of applications. Suitable for use in industrial, commercial, or residential settings, this motor is ideal for powering small machinery, equipment, and systems. Its permanent magnet design provides consistent torque and speed, while its totally enclosed non-ventilated enclosure protects against dust and moisture. With a high-temperature rating and durable construction, this motor is built to withstand demanding environments and provide long-lasting performance. Its compact size and easy mounting options make it easy to integrate into existing systems.
Top product features:
- Permanent Magnet DC design provides a compact and efficient motor configuration
- Totally Enclosed Nonventilated enclosure protects the motor from dust and debris
- Ball bearings ensure smooth and reliable motor operation
Top product applications:
- DC power tools such as drills and saws
- Industrial automation systems
- Robotics and robotic arms
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1/3 HP, Nameplate RPM 1,800 RPM, Voltage 12V DC, 27.0 A Full Load Amps, 56C Frame, Full Load Torque 11.7 in-lb, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in, Brush Type Carbon, Overall Length 10 3/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 8.40
- Package Height: 11.70
- Package Weight: 21.90
Product info last updated on March 19, 2026 2:32pm UTC
Category: Motors
