DC Permanent Magnet Motor, 20.0A, 24VDC MPN:108051.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608801

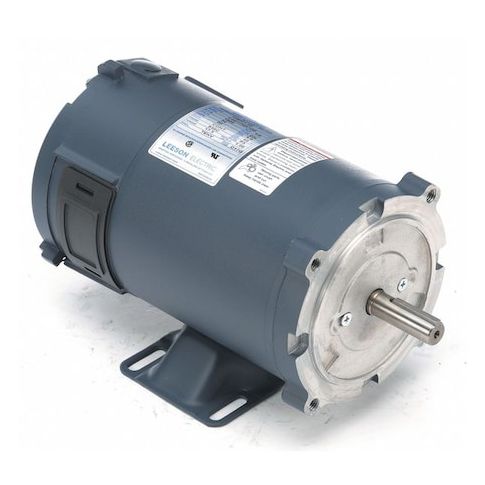

DC Permanent Magnet Motor, 20.0A, 24VDC
This DC Permanent Magnet Motor from Leeson is a reliable and efficient solution for a wide range of applications. With a 1/2 HP rating and 1,800 RPM, it's ideal for use in conveyor systems, material handling equipment, and other low-to-medium speed applications. The motor's permanent magnet design provides consistent performance and high torque output, making it suitable for use in industries such as manufacturing, packaging, and food processing. Its compact and rugged design also makes it easy to integrate into existing systems, reducing downtime and increasing productivity. Suitable for continuous duty cycles in temperatures up to 40°C.
Top product features:
- Permanent Magnet DC motor design
- Totally Enclosed Nonventilated motor enclosure
- Continuous duty cycle
Top product applications:
- Air Compressor
- Conveyor Systems
- Material Handling Equipment
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1/2 HP, Nameplate RPM 1,800 RPM, Voltage 24V DC, 20.0 A Full Load Amps, 56C Frame, Full Load Torque 17.5 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 10.80
- Package Height: 11.60
- Package Weight: 26.50
Product info last updated on March 15, 2026 12:54am UTC
Category: Motors
