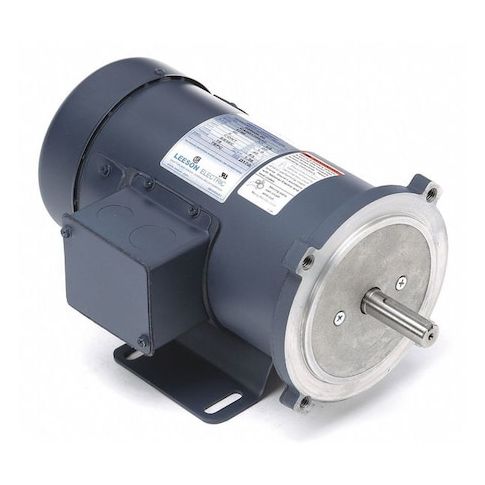

DC Permanent Magnet Motor, 1/2 HP, 1, 750 Nameplate RPM, 56C Frame, Face/Base Mounting, 90V DC MPN:098000.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608759
DC Permanent Magnet Motor, 1/2 HP, 1, 750 Nameplate RPM, 56C Frame, Face/Base Mounting, 90V DC
This 1/2 HP DC Permanent Magnet Motor from Leeson is a reliable and efficient solution for various applications. Suitable for use in continuous duty cycles, it operates at 1,750 Nameplate RPM and 90V DC, with a maximum ambient temperature of 40 Degrees C. Its totally enclosed fan-cooled design ensures optimal performance in harsh environments. With a removable base and ball bearings, this motor is easy to install and maintain. Ideal for use in industrial automation, material handling, and other applications where a compact and reliable motor is required. Its compact size and high efficiency make it a valuable addition to any system.
Top product features:
- Permanent Magnet DC motor design for efficient and reliable operation
- Totally Enclosed Fan-Cooled motor enclosure for protection against dust and moisture
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
- Fans and blowers for industrial ventilation and air circulation
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1/2 HP, Nameplate RPM 1,750 RPM, Voltage 90V DC, 5.0 A Full Load Amps, 56C Frame, Full Load Torque 18 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 10.70
- Package Height: 11.30
- Package Weight: 25.60
Product info last updated on February 21, 2026 5:41pm UTC
Category: Motors
