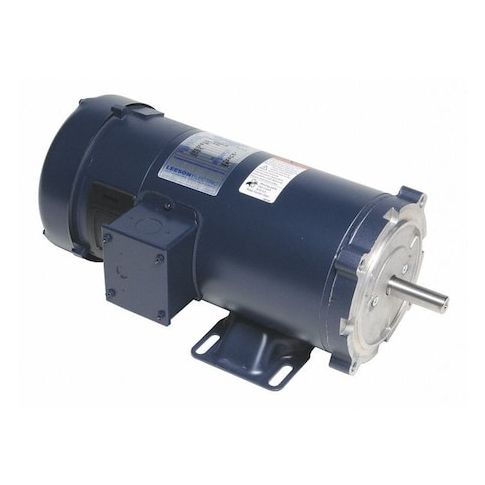

DC Permanent Magnet Motor, 10.0A, 1 HP MPN:108022.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608731
DC Permanent Magnet Motor, 10.0A, 1 HP
The DC Permanent Magnet Motor from Leeson is a reliable and efficient solution for a variety of applications. With a 1 HP rating and 1,750 nameplate RPM, this motor is ideal for low-voltage DC power systems. Its totally enclosed fan-cooled design ensures optimal performance in harsh environments, while the ball bearings provide smooth and quiet operation. Suitable for continuous duty cycles, this motor is perfect for use in pumps, fans, and other equipment where consistent power is required. Its compact design and easy mounting make it a versatile option for a range of industries and applications.
Top product features:
- Motor design is Permanent Magnet DC, which provides a high power-to-weight ratio and efficiency.
- Motor has a Totally Enclosed Fan-Cooled design, which allows for continuous operation in a variety of environments.
- Motor shaft rotation is CW/CCW, which provides flexibility in installation and use.
Top product applications:
- Industrial conveyor systems
- Material handling equipment
- Robotics and automation systems
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1 HP, Nameplate RPM 1,750 RPM, Voltage 90V DC, 10.0 A Full Load Amps, 56C Frame, Full Load Torque 36 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 10.70
- Package Height: 11.20
- Package Weight: 39.60
Product info last updated on February 13, 2026 9:12pm UTC
Category: Motors
