DC Permanent Magnet Motor, 3.8A, 3/4 HP MPN:098069.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608689

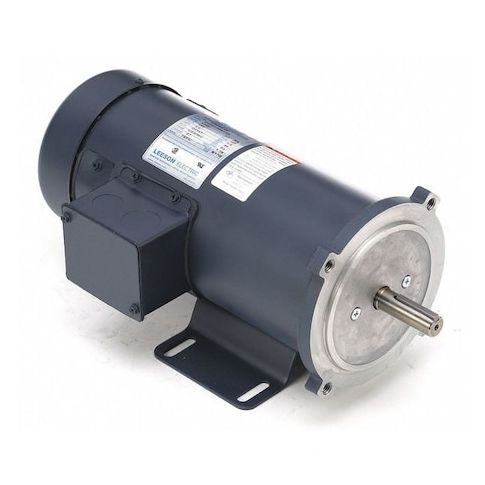

DC Permanent Magnet Motor, 3.8A, 3/4 HP
This DC Permanent Magnet Motor from Leeson is a reliable and efficient solution for a variety of applications, including material handling, packaging, and conveyor systems. With a 3/4 HP rating and 1,750 nameplate RPM, it provides consistent performance and smooth operation. The motor's permanent magnet design and totally enclosed fan-cooled enclosure ensure long lifespan and minimal maintenance. Its compact 56C frame and ball bearings enable easy integration into tight spaces. Suitable for continuous duty cycles, this motor is ideal for applications requiring reliable and efficient power. Its compact size and robust design make it an excellent choice for a range of industries.
Top product features:
- Permanent Magnet DC motor design for efficient and reliable operation
- Totally Enclosed Fan-Cooled design for improved heat dissipation and reduced maintenance
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pumps
- Air compressors
- Conveyors
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 3/4 HP, Nameplate RPM 1,750 RPM, Voltage 180V DC, 3.8 A Full Load Amps, 56C Frame, Full Load Torque 27 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 11.20
- Package Height: 11.10
- Package Weight: 33.70
Product info last updated on March 7, 2026 2:46am UTC
Category: Motors
