DC Permanent Magnet Motor, 7.6A, 180VDC MPN:108092.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608661

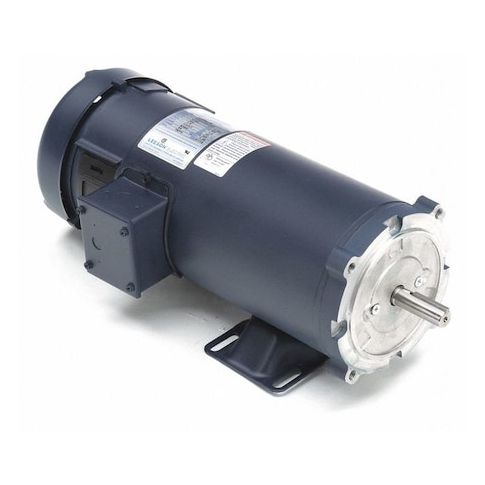

DC Permanent Magnet Motor, 7.6A, 180VDC
This DC Permanent Magnet Motor from Leeson is a reliable and efficient solution for a variety of applications, including industrial automation, robotics, and renewable energy systems. With a 1 1/2 HP rating and 1,750 nameplate RPM, it provides consistent performance and high torque output. The motor's compact design and totally enclosed fan-cooled enclosure make it ideal for use in harsh environments. Its continuous duty cycle and ball bearings ensure long-lasting operation. Suitable for applications such as conveyor systems, pumps, and compressors, this motor offers a cost-effective and reliable solution for industrial and commercial use.
Top product features:
- Permanent Magnet DC motor design
- Totally Enclosed Fan-Cooled motor enclosure
- Ball bearings for smooth and durable operation
Top product applications:
- Material Handling Equipment
- Pumps and Compressors
- Fans and Blowers
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1 1/2 HP, Nameplate RPM 1,750 RPM, Voltage 180V DC, 7.6 A Full Load Amps, 56C Frame, Full Load Torque 54 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in, Brush Type External
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 10.80
- Package Height: 11.00
- Package Weight: 49.70
Product info last updated on March 18, 2026 2:58pm UTC
Category: Motors
