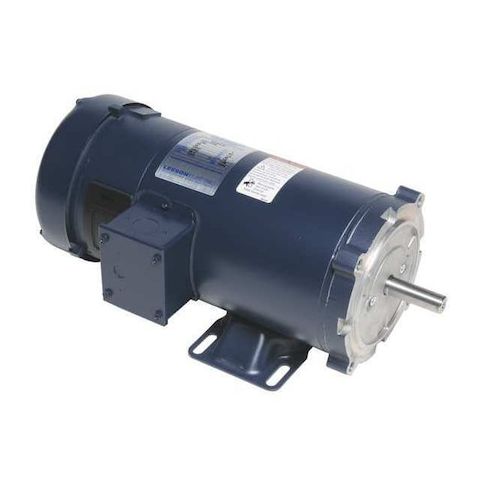

DC Permanent Magnet Motor, 1-1/2HP, 180VDC
This 1.5 HP DC Permanent Magnet Motor from Leeson is a reliable and efficient solution for a variety of applications. Suitable for use in continuous duty cycles, it provides a maximum of 1,750 RPM at 180V DC and 7.6A of full-load current. The motor features a totally enclosed fan-cooled design and is built with ball bearings for smooth operation. Its compact size and lightweight design make it ideal for use in robotics, material handling, and other industrial applications where a compact and reliable motor is required. Its high torque output also makes it suitable for use in applications with heavy loads.
Top product features:
- Permanent Magnet DC motor design provides a consistent and reliable power output
- Totally Enclosed Fan-Cooled design helps to prolong motor lifespan by keeping it cool in harsh environments
- Ball bearings on the motor shaft ensure smooth and quiet operation
Top product applications:
- Automation of small machines and equipment
- Material handling systems
- Conveyor systems
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1 1/2 HP, Nameplate RPM 1,750 RPM, Voltage 180V DC, 7.6 A Full Load Amps, S56CZ Frame, Full Load Torque 54 in-lb, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Shaft Dia. 7/8 in, Motor Bearings Ball, Shaft Length 2 1/2 in, Brush Type External, Overall Length 17 3/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 10.70
- Package Height: 11.40
- Package Weight: 51.20
