DC Permanent Magnet Motor, 5.0A, 180VDC MPN:108021.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608628

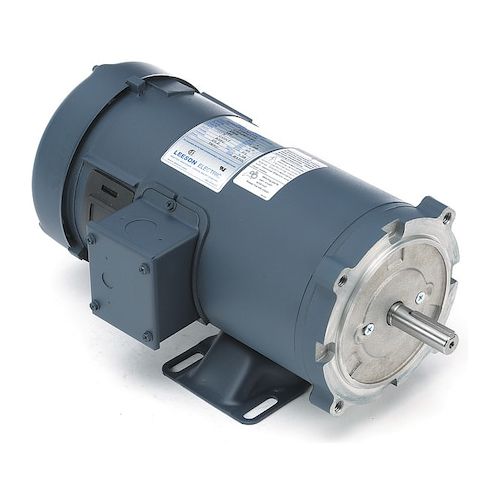

DC Permanent Magnet Motor, 5.0A, 180VDC
This DC Permanent Magnet Motor from Leeson is a reliable and efficient solution for various applications. With a 1 HP rating and 2,500 RPM, it's suitable for use in industrial settings, such as material handling, conveyors, and pumps. The motor's totally enclosed fan-cooled design ensures optimal performance and longevity, even in harsh environments. Its compact size and removable base make it easy to integrate into existing systems. The motor's continuous duty cycle and high torque output make it ideal for applications requiring consistent power and reliability. Its compact size and removable base make it ideal for a variety of industrial applications.
Top product features:
- Permanent Magnet DC motor design for efficient and reliable operation
- Totally Enclosed Fan-Cooled design for improved cooling and reduced maintenance
- Continuous duty cycle capability for uninterrupted operation
Top product applications:
- Material Handling Equipment
- Conveyor Systems
- Automotive Manufacturing Machinery
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1 HP, Nameplate RPM 2,500, Voltage 180V DC, 5.0 A Full Load Amps, 56C Frame, Full Load Torque 25.2 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Ball
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 10.70
- Package Height: 11.10
- Package Weight: 33.30
Product info last updated on March 3, 2026 12:30am UTC
Category: Motors
