DC Permanent Magnet Motor, 7.5A, 1-1/2 HP MPN:108265.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608619

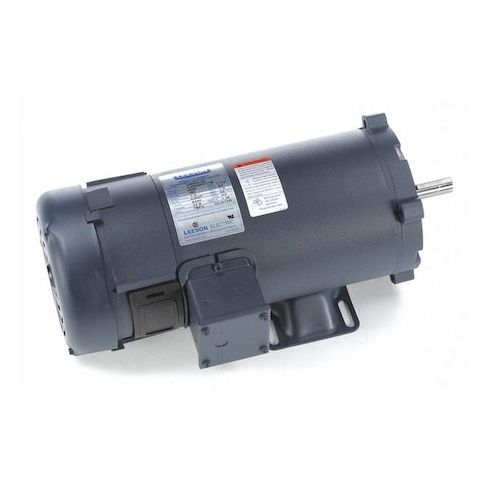

DC Permanent Magnet Motor, 7.5A, 1-1/2 HP
This 1.5 HP DC Permanent Magnet Motor from Leeson is a reliable and efficient solution for a variety of applications, including material handling, pumping, and conveyor systems. Its 2,500 RPM nameplate speed and 37.8 in-lb full load torque make it ideal for demanding tasks. The motor's totally enclosed fan-cooled design and ball bearings ensure smooth operation and long lifespan. With a 7.5A full load current and a continuous duty cycle, this motor is perfect for applications where reliability and performance are critical. Its compact 56C frame and CW/CCW shaft rotation make it easy to integrate into existing systems.
Top product features:
- Permanent Magnet DC motor design
- Totally Enclosed Fan-Cooled motor enclosure
- Ball bearings for motor support
Top product applications:
- Industrial Automation Systems
- Material Handling Equipment
- Robotics and Automation Systems
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1 1/2 HP, Nameplate RPM 2,500 RPM, Voltage 180V DC, 7.5 A Full Load Amps, 56C Frame, Full Load Torque 37.8 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Ball
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 11.40
- Package Height: 11.00
- Package Weight: 42.50
Product info last updated on February 24, 2026 9:41am UTC
Category: Motors
