Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame

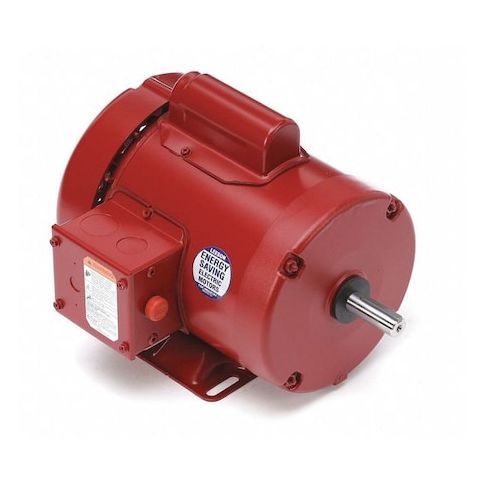

The Leeson Farm Duty Motor is a reliable and efficient solution for agricultural and industrial applications. This 1/2 HP, capacitor-start motor operates at 1,725 Nameplate RPM and is designed for continuous duty cycles. With a 56 frame and totally enclosed fan cooled design, it provides protection from harsh environments and extended lifespan. Suitable for use at 115/208-230V AC, this motor is ideal for applications such as irrigation systems, grain handling equipment, and farm machinery. Its compact size and rigid base mounting make it easy to integrate into existing systems, offering a cost-effective and dependable solution for demanding operations.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor efficiency and reliability
- Manual thermal protection for user monitoring and control
- Single Phase Capacitor-Start motor design for efficient and reliable operation
Top product applications:
- Pumps and irrigation systems for agricultural use
- Well and borehole pumps for water supply
- Centrifugal fans for ventilation and cooling in agricultural buildings
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.8/4.4 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 10.90
- Package Height: 11.30
- Package Weight: 24.30
