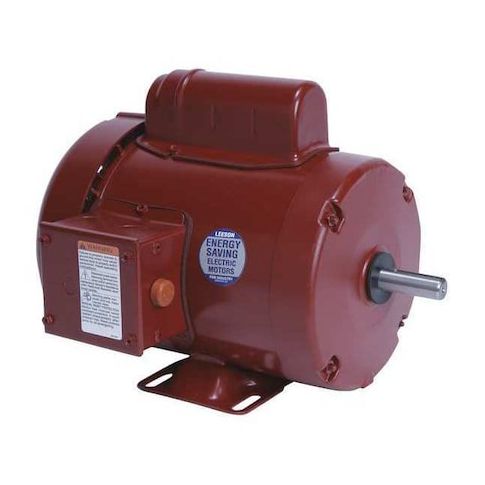

Farm Duty Motor, Capacitor-Start, 3/4 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame MPN:110087.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608479
Farm Duty Motor, Capacitor-Start, 3/4 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame
This 3/4 HP, single-phase Farm Duty Motor is designed for heavy-duty applications, featuring a capacitor-start design and a totally enclosed fan-cooled enclosure for optimal performance and protection. With a nameplate RPM of 1,725 and a motor service factor of 1.15, this motor is ideal for continuous duty cycles in agricultural settings. Its compact size and rigid base mounting type make it easy to install and integrate into existing systems. Suitable for use at 115/208-230V AC, this motor is a reliable and efficient solution for a variety of applications, including irrigation systems, pumps, and other farm equipment.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reliability
- Manual motor thermal protection for safe operation
- Capacitor-start motor design for efficient power delivery
Top product applications:
- Pump applications for water or irrigation systems
- Grain elevators or other agricultural equipment
- Industrial fans or ventilation systems
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.8/5.4 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 11.00
- Package Height: 11.40
- Package Weight: 28.40
Product info last updated on February 15, 2026 4:09am UTC
Category: Motors
