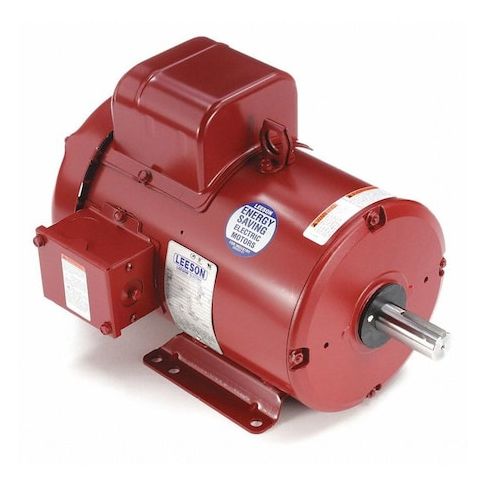

Farm Duty Motor, Capacitor-Start, 3 HP, 230V AC, 1, 740 Nameplate RPM, 184T Frame MPN:131542.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608418
Farm Duty Motor, Capacitor-Start, 3 HP, 230V AC, 1, 740 Nameplate RPM, 184T Frame
This Marathon Farm Duty Motor is a reliable and efficient solution for heavy-duty applications, featuring a capacitor-start design for increased power and a rugged 184T frame for durability. Suitable for use in agricultural and industrial settings, it operates at 1,740 RPM and 230V AC, with a continuous duty cycle and manual thermal protection. With a service factor of 1.15, it can handle demanding tasks with ease. Its totally enclosed fan-cooled design ensures optimal performance in harsh environments, making it ideal for use in equipment such as pumps, conveyors, and irrigation systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reliability
- Motor Shaft Rotation in both CW and CCW directions for flexibility and adaptability
- Continuous Duty Cycle operation for high-performance and efficiency
Top product applications:
- Pump for irrigation systems
- Agricultural equipment such as tractors and plows
- Generators and power tools for rural areas
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 19.0 A, 184T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.75
- Package Width: 20.30
- Package Height: 15.30
- Package Weight: 86.00
Product info last updated on March 8, 2026 1:10am UTC
Category: Motors
