Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56C Frame MPN:110495.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4608339

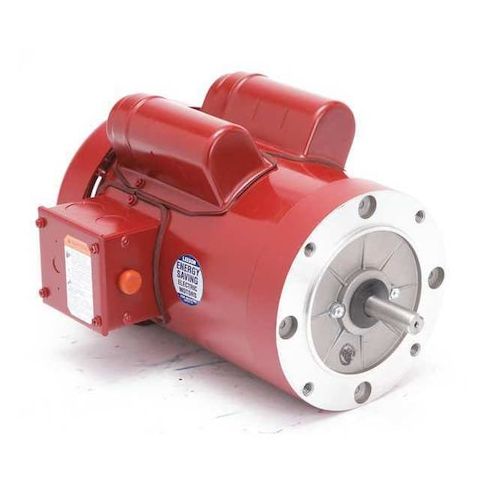

Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56C Frame
This 1 1/2 HP Farm Duty Motor from Leeson is designed for rugged applications, featuring a capacitor-start/run design and a totally enclosed fan-cooled (TEFC) enclosure to withstand harsh environments. Suitable for continuous duty cycles, it operates at 1,725 RPM and is rated for 115/208-230V AC. The motor is also equipped with thermal protection and a service factor of 1.15, making it a reliable choice for various applications, including agricultural equipment, pumps, and conveyor systems. Its compact design and durable construction make it an ideal solution for farms, ranches, and other industries requiring heavy-duty motors.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient way to dissipate heat.
- Single Phase Motor Design allows for easier installation and reduced installation costs.
- Continuous Duty Cycle capability enables the motor to operate for extended periods without overheating.
Top product applications:
- Pump applications for irrigation systems
- Well pumps for residential use
- Sewage lift stations
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.2/8.8-8.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 11.10
- Package Height: 11.60
- Package Weight: 39.20
Product info last updated on February 18, 2026 6:37pm UTC
Category: Motors
