BrakeMotor, 1/3hp, 1725RPM, 208-230/460VAC MPN:056T17F5348
BrakeMotor, 1/3hp, 1725RPM, 208-230/460VAC

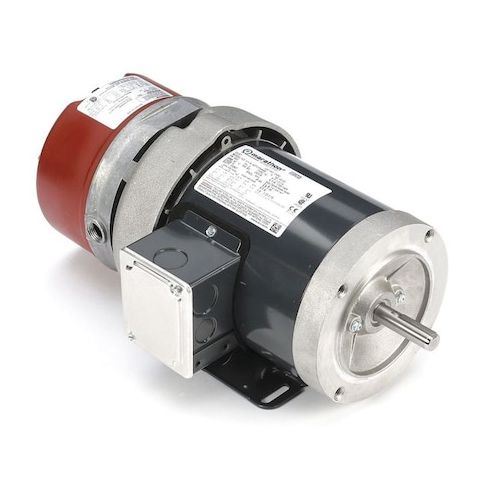

This 1/3 HP three-phase brake motor from Leeson is designed for demanding applications where reliable braking is essential. With a nameplate RPM of 1,725 and a continuous duty cycle, it can handle heavy loads and withstand high temperatures. The totally enclosed fan-cooled (TEFC) design ensures efficient cooling and reduces maintenance. Suitable for use in various industries, including manufacturing, material handling, and packaging, this motor provides a reliable and cost-effective solution for applications requiring precise control and braking. Its compact size and CW/CCW rotation make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient operation in a variety of environments.
- Continuous Duty Cycle allows for uninterrupted operation over extended periods of time.
- 1.75 RPM motor speed is suitable for applications requiring a moderate level of torque and speed.
Top product applications:
- Pump and water treatment systems
- Conveyor systems for light to medium-duty applications
- Textile machinery
Brake Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.5-1.6/0.8 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.88
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 31.00
Product info last updated on January 22, 2026 12:43pm UTC
Category: Motors
