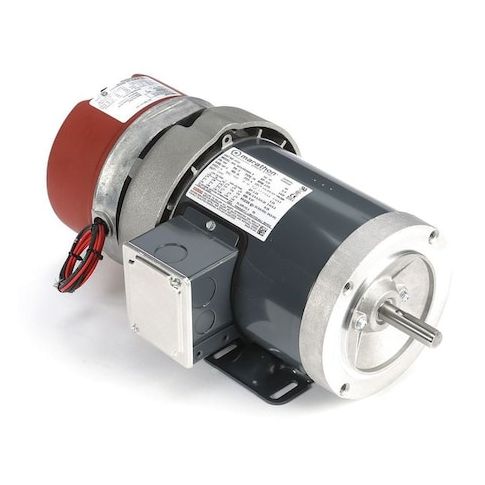

Brake Motor, TEFC, 1/2 HP, 56C, 208-230/460 MPN:056T17F5349
Brake Motor, TEFC, 1/2 HP, 56C, 208-230/460
This 1/2 HP TEFC brake motor from Leeson is a reliable and efficient solution for various industrial applications. Suitable for use at 208V, it provides continuous duty operation with a maximum ambient temperature of 40°C. The motor's three-phase design and totally enclosed fan-cooled enclosure ensure optimal performance and protection. Its rigid base and C-face mounting type provide stability and ease of installation. Ideal for use in conveyor systems, cranes, and other heavy-duty equipment, this motor's high service factor and robust construction make it a valuable addition to any industrial operation.
Top product features:
- Three-Phase Motor Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle Capability
Top product applications:
- Air Compressor
- Conveyor System
- Textile Machinery
Brake Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 2.3-2.4/1.2 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.88
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 30.00
Product info last updated on February 13, 2026 10:14am UTC
Category: Motors
