Three-Phase Washdown Motor, 2 hp HP, 145TC Frame, 230/460V AC Voltage, 1, 745 RPM Nameplate RPM MPN:122197.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4448066

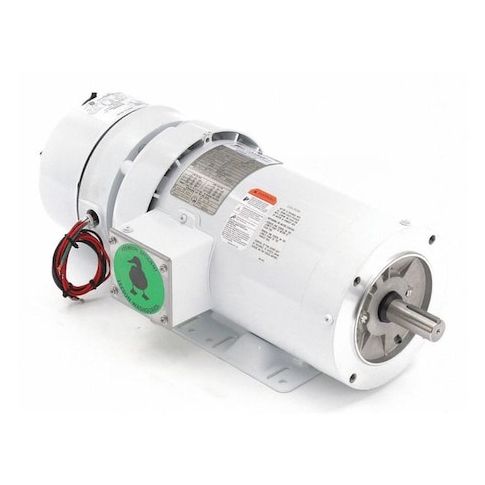

Three-Phase Washdown Motor, 2 hp HP, 145TC Frame, 230/460V AC Voltage, 1, 745 RPM Nameplate RPM
This three-phase washdown motor is designed for heavy-duty applications in food processing, pharmaceutical, and chemical industries. Its totally enclosed fan-cooled design and NEMA Design B rating ensure reliable operation in harsh environments. The motor's 1,745 RPM nameplate speed and 2 hp horsepower make it suitable for high-velocity washdowns. With a 1.15 service factor and Class F insulation, it can withstand demanding conditions. The motor's compact 145TC frame and removable base make it easy to install and maintain. Its continuous duty cycle and wide voltage range (230/460V AC) make it a versatile solution for various washdown applications.
Top product features:
- Three-phase design provides efficient power distribution for heavy-duty applications.
- Totally enclosed fan cooled design protects the motor from dust and debris, ensuring reliable operation in harsh environments.
- Continuous duty cycle allows for uninterrupted operation, making it suitable for applications that require consistent performance.
Top product applications:
- Food Processing
- Chemical Processing
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 11.00
- Package Height: 11.00
- Package Weight: 65.00
Product info last updated on February 3, 2026 1:48pm UTC
Category: Motors
