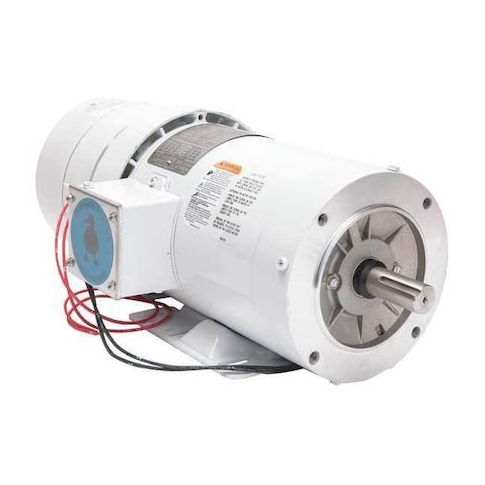

Three-Phase Washdown Motor, 1 1/2 hp HP, 145TC Frame, 230/460V AC Voltage, 1, 750 RPM Nameplate RPM MPN:122194.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4448057
Three-Phase Washdown Motor, 1 1/2 hp HP, 145TC Frame, 230/460V AC Voltage, 1, 750 RPM Nameplate RPM
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.40
- Package Width: 11.10
- Package Height: 11.30
- Package Weight: 52.80
Product info last updated on February 14, 2026 8:43am UTC
Category: Motors
