Capacitor-Start Washdown Motor, 2 hp HP, 115/208-230V AC Voltage, 182T Frame MPN:131571.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4448048

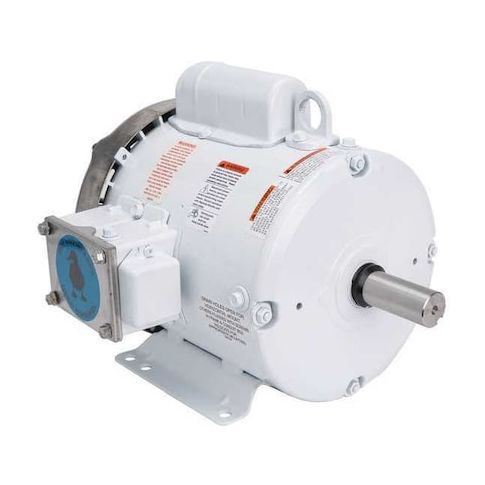

Capacitor-Start Washdown Motor, 2 hp HP, 115/208-230V AC Voltage, 182T Frame
This 2 hp Capacitor-Start Washdown Motor from Marathon is designed for use in harsh environments, such as food processing and chemical plants. Its totally enclosed fan-cooled design and Class F insulation ensure reliable operation in temperatures up to 40°C. The motor's continuous duty cycle and single-phase operation make it suitable for a wide range of applications, including conveyor systems, pumps, and mixers. Its compact 182T frame and removable base make it easy to install and maintain, reducing downtime and increasing productivity. With a lead time of just 15 days, this motor is an ideal solution for industries requiring high-performance washdown motors.
Top product features:
- Totally Enclosed Fan Cooled design for protection from environmental contaminants
- Single Phase motor design with Capacitor-Start for efficient operation
- Continuous duty cycle for reliable and consistent performance
Top product applications:
- Food processing equipment
- Pharmaceutical manufacturing equipment
- Chemical processing equipment
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 12.6 A, 182T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.70
- Package Width: 13.70
- Package Height: 14.00
- Package Weight: 64.70
Product info last updated on February 5, 2026 6:46pm UTC
Category: Motors
