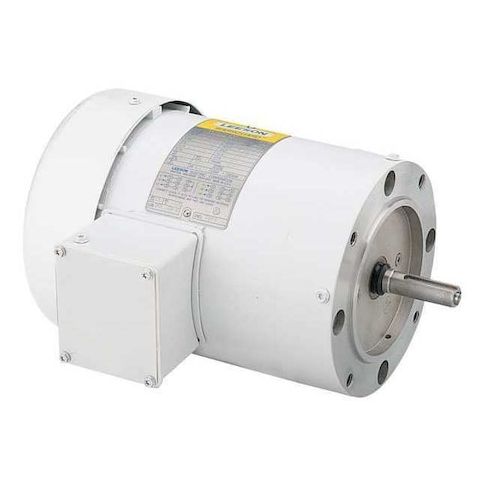

Three-Phase Washdown Motor, 1 1/2 hp HP, 56J Frame, 208-230/460V AC Voltage, 3, 490 RPM Nameplate RPM MPN:119458.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4448039
Three-Phase Washdown Motor, 1 1/2 hp HP, 56J Frame, 208-230/460V AC Voltage, 3, 490 RPM Nameplate RPM
This Three-Phase Washdown Motor is designed for demanding applications in food processing, pharmaceutical, and other industries where high sanitation standards are required. Its totally enclosed fan-cooled design and NEMA Design B rating ensure efficient operation and durability. The motor's continuous duty cycle and 1.15 service factor make it suitable for 24/7 operation. With a 3,490 RPM nameplate speed and 1.5 hp horsepower, it provides reliable performance in applications such as pumps, conveyors, and mixers. Its compact 56J frame and 208-230/460V AC voltage range make it a versatile solution for various washdown environments.
Top product features:
- Totally Enclosed Fan Cooled design
- Three-Phase design for efficient power distribution
- Continuous Duty Cycle for uninterrupted operation
Top product applications:
- Food Processing
- Meat Packing
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.4-4.0/2.0 A, 56J Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.00
- Package Height: 11.80
- Package Weight: 34.10
