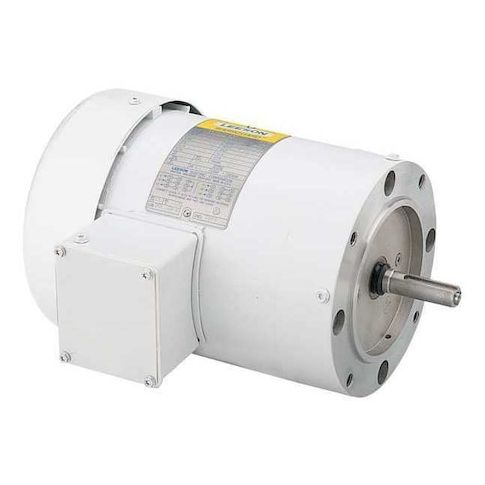

Three-Phase Washdown Motor, 3 hp HP, 56J Frame, 230/460V AC Voltage, 3, 490 RPM Nameplate RPM MPN:119462.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4448005
Three-Phase Washdown Motor, 3 hp HP, 56J Frame, 230/460V AC Voltage, 3, 490 RPM Nameplate RPM
This three-phase washdown motor is a reliable and efficient solution for heavy-duty applications in food processing, pharmaceutical, and chemical industries. Its 3 hp power and 3,490 RPM nameplate speed make it ideal for high-torque tasks, while its totally enclosed fan-cooled design and IP55 rating ensure optimal performance in harsh environments. The motor's continuous duty cycle and NEMA Design B rating guarantee long-lasting operation. With a compact 56J frame and removable base, installation and maintenance are simplified. Suitable for use in washdown areas, this motor is a cost-effective and durable choice for applications requiring high-performance and reliability.
Top product features:
- Three-phase design for efficient power distribution
- Totally Enclosed Fan Cooled design for durability and reduced maintenance
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Food Processing Equipment
- Pulp and Paper Mills
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.0/4.0 A, 56J Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.30
- Package Width: 11.00
- Package Height: 11.20
- Package Weight: 46.90
