Washdown Motor, 1 HP, 1725 RPM MPN:191479.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4447847

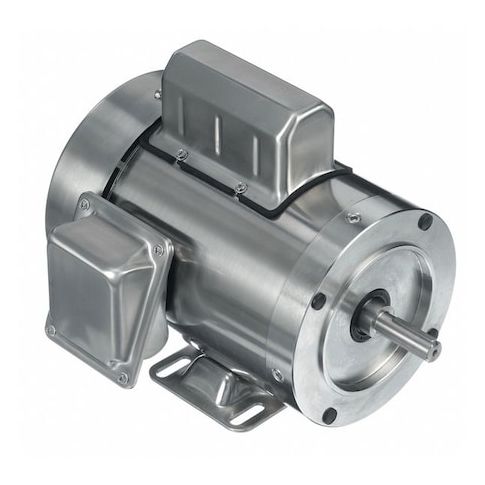

Washdown Motor, 1 HP, 1725 RPM
This 1 HP, 1725 RPM washdown motor from Leeson is designed for use in harsh environments where high pressure washdowns are required. Its totally enclosed fan cooled design and NEMA Design N rating ensure optimal performance and protection against dust and water. Ideal for applications such as food processing, pharmaceutical manufacturing, and other industries where cleanliness is paramount. The motor's single phase design and capacitor-start feature provide efficient operation and reliability. With a continuous duty cycle and 1.15 service factor, this motor can handle demanding tasks with ease, making it a reliable choice for a wide range of washdown applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Single Phase motor design for easy installation and compatibility with common electrical systems
- Continuous Duty Cycle for reliable operation in demanding applications
Top product applications:
- Washdown applications in food processing plants
- Pumps and equipment in chemical processing plants
- Industrial equipment in pharmaceutical manufacturing facilities
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.6/6.8 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 10.70
- Package Height: 10.70
- Package Weight: 28.20
Product info last updated on March 24, 2026 8:40pm UTC
Category: Motors
