Washdown Motor, 1/2 HP, 1740 RPM

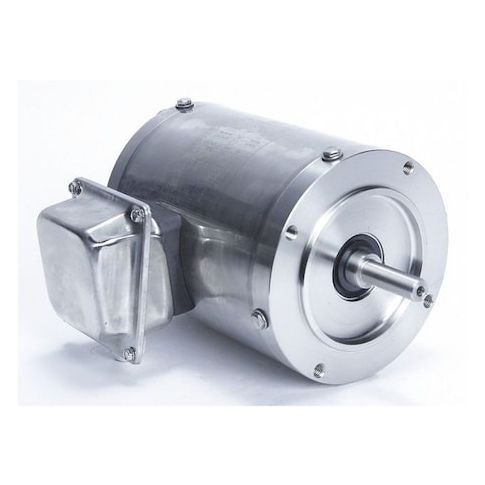

The Leeson Washdown Motor is a reliable and efficient solution for a variety of industrial applications. Designed for continuous operation, this 1/2 HP motor can handle demanding washdown environments and provides a long lifespan. With a 1740 RPM nameplate speed and 1.15 service factor, it can withstand heavy use and maintain performance. Suitable for applications in food processing, pharmaceutical, and chemical industries, this motor is also resistant to corrosion and moisture. Its compact design and C-face mounting make it easy to install and integrate into existing systems, providing a cost-effective and efficient solution for your washdown needs.
Top product features:
- Three-Phase design
- Totally Enclosed Non-Ventilated motor enclosure
- Continuous duty cycle
Top product applications:
- Washdown motor for a brewery or winery to power a pump or conveyor system in a wet environment.
- Washdown motor for a food processing facility to power a mixer or grinder in a high-humidity area.
- Washdown motor for a chemical plant to power a pump or agitator in a corrosive environment.
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.6/0.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.60
- Package Width: 10.30
- Package Height: 8.30
- Package Weight: 30.20
