WashdownMotor, 3/4hp, 1740RPM, 230/460VAC MPN:191208.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4447759

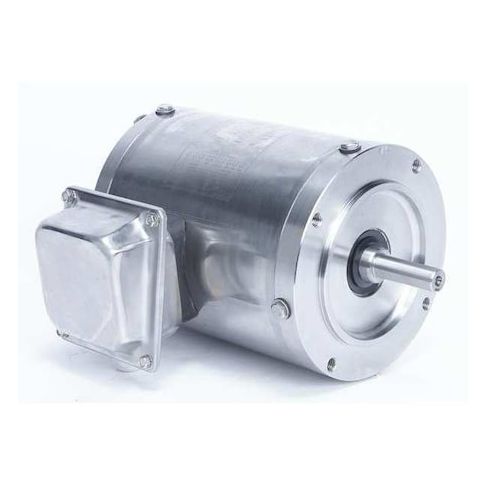

WashdownMotor, 3/4hp, 1740RPM, 230/460VAC
The Leeson 3/4 HP washdown motor is a reliable and efficient solution for various industrial applications. Designed for continuous use in harsh environments, this motor features a totally enclosed non-ventilated design and a 56C frame for added protection. With a nameplate RPM of 1740 and a voltage range of 230/460V AC, this motor is suitable for use in a variety of settings, including food processing, pharmaceutical, and chemical manufacturing. Its compact size and easy mounting make it a convenient choice for applications where space is limited. This motor is ideal for applications requiring high reliability and durability.
Top product features:
- Three-phase design
- Totally enclosed non-ventilated motor enclosure
- Continuous duty cycle
Top product applications:
- Industrial Laundry Equipment
- Commercial Food Processing Machinery
- Pumping Stations for Swimming Pools
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.4/1.2 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.20
- Package Width: 11.60
- Package Height: 10.40
- Package Weight: 34.30
Product info last updated on February 23, 2026 11:35am UTC
Category: Motors
