Washdown Motor, 1/2 HP, 1740 RPM MPN:191204.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4447698

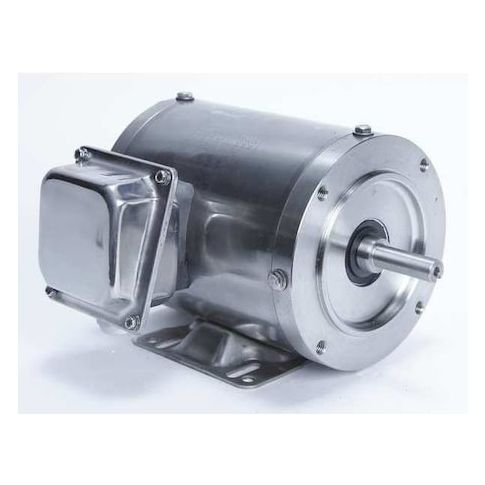

Washdown Motor, 1/2 HP, 1740 RPM
This 1/2 HP washdown motor from Leeson is a reliable and efficient solution for various industrial applications. Suitable for use in harsh environments, it features a totally enclosed non-ventilated design and a maximum ambient temperature of 40 degrees C. With a continuous duty cycle and a NEMA Design B rating, this motor can handle demanding tasks. Its three-phase design and 1740 RPM speed make it ideal for applications such as food processing, pharmaceutical manufacturing, and chemical handling. The motor's compact size and lightweight design also make it easy to integrate into existing systems.
Top product features:
- Three-phase motor design
- Usable at 208V
- Totally enclosed non-ventilated motor enclosure
Top product applications:
- Food Processing Equipment
- Water Treatment Plants
- Chemical Manufacturing Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.6/0.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.50
- Package Width: 10.50
- Package Height: 8.10
- Package Weight: 31.75
Product info last updated on February 25, 2026 7:34am UTC
Category: Motors
