Washdown Motor, 1 HP, 1140 RPM MPN:191421.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4447637

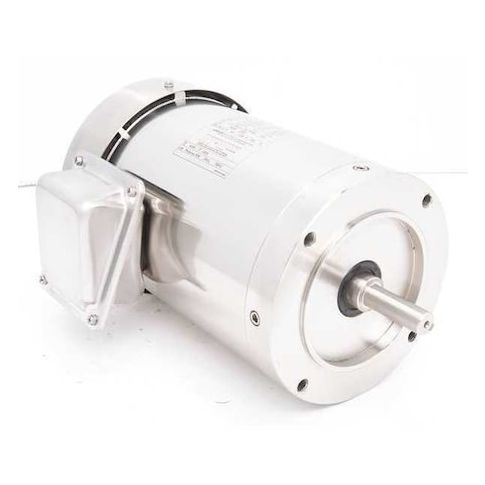

Washdown Motor, 1 HP, 1140 RPM
This 1 HP, 1140 RPM washdown motor from Leeson is designed for heavy-duty applications in harsh environments. Its totally enclosed fan-cooled design and Class F insulation ensure reliable operation in temperatures up to 40°C. Suitable for continuous duty cycles, this motor is ideal for use in food processing, pharmaceutical, and other industries where cleanliness is crucial. Its compact 56C frame and CW/CCW rotation make it easy to integrate into existing systems. With a service factor of 1.15 and a short lead time of 1 day, this motor is perfect for applications requiring high performance and efficiency in a compact package.
Top product features:
- Three-phase motor design
- Totally enclosed fan cooled motor enclosure
- Continuous duty cycle
Top product applications:
- Pumps and fluid handling equipment
- Washing machines and cleaning equipment
- Industrial laundry systems
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.8/1.9 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 12.30
- Package Height: 10.20
- Package Weight: 45.05
Product info last updated on February 2, 2026 3:51pm UTC
Category: Motors
