Washdown Motor, 1 HP, 1140 RPM MPN:191417.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4447585

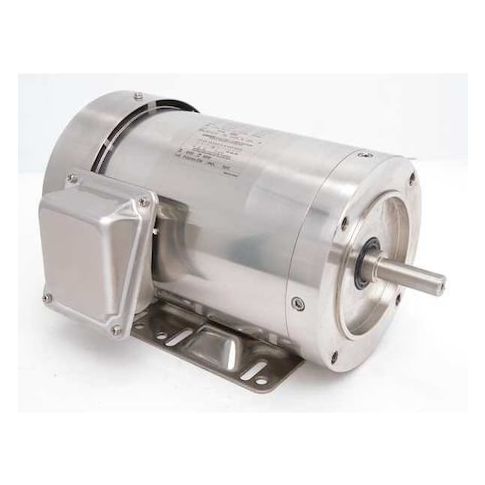

Washdown Motor, 1 HP, 1140 RPM
This 1 HP, 1140 RPM washdown motor from Leeson is designed for harsh environments and demanding applications. Suitable for use in 208V systems, it features a totally enclosed fan-cooled design and a NEMA Design B rating for reliable performance. The motor's continuous duty cycle and 1.15 service factor make it ideal for applications where high torque and efficiency are required. Perfect for use in food processing, pharmaceutical, and other sanitary industries where cleanliness and reliability are paramount. Its compact size and rugged construction make it a great choice for OEMs and equipment manufacturers looking for a reliable washdown motor solution.
Top product features:
- Three-Phase design
- Totally Enclosed Fan Cooled enclosure
- Continuous duty cycle
Top product applications:
- Pumps and other equipment in chemical processing plants
- Washing machines and equipment in food processing facilities
- Industrial laundry equipment and washdown machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.8/1.9 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.16
- Package Width: 11.02
- Package Height: 9.65
- Package Weight: 47.00
Product info last updated on January 23, 2026 8:24am UTC
Category: Motors
