Washdown Motor, 3 HP, 3470 RPM MPN:191492.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4447549

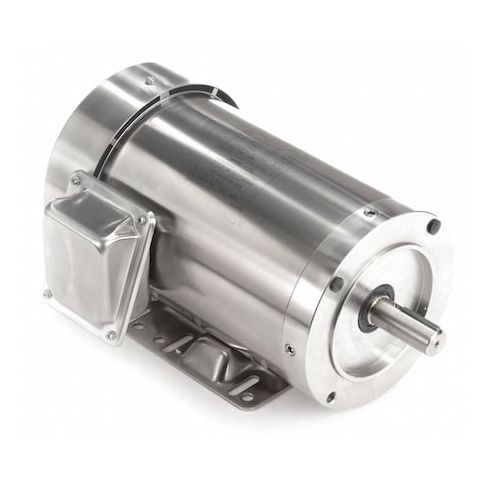

Washdown Motor, 3 HP, 3470 RPM
This Leeson Washdown Motor is a reliable and efficient solution for various industrial applications. Its 3 HP, 3470 RPM design makes it suitable for high-speed operations in harsh environments. The motor's totally enclosed fan-cooled design ensures safe and quiet operation, while its continuous duty cycle and NEMA Design B rating make it ideal for applications requiring high reliability. The motor's compact size and lightweight design make it easy to integrate into existing systems. Use it in food processing, chemical handling, or other washdown environments where high-speed and reliability are crucial. Its compact size and efficiency make it a valuable asset for any industrial operation.
Top product features:
- Totally Enclosed Fan Cooled design provides a clean and dry environment for the motor.
- Operates at 3470 RPM, suitable for applications requiring high-speed operation.
- Has a 3 HP rating, suitable for heavy-duty applications.
Top product applications:
- Pumps for high-pressure washdown systems
- Centrifugal pumps for chemical processing plants
- High-volume water circulation systems in industrial settings
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,470 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 7.2/3.6 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.00
- Package Height: 10.10
- Package Weight: 55.30
Product info last updated on February 7, 2026 10:10am UTC
Category: Motors
