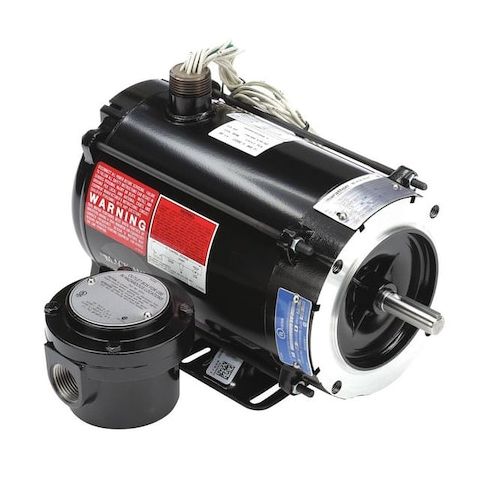

Vector Motor, 2.25 lb-ft, 3/4 HP, 230/460 V MPN:056H17E5304
Vector Motor, 2.25 lb-ft, 3/4 HP, 230/460 V
This 3/4 HP Vector Motor from Leeson is a reliable and efficient solution for various industrial applications. Designed for three-phase operation, it provides a high torque output of 2.25 lb-ft and a speed range of 1,000:1, making it ideal for applications requiring precise control and high efficiency. Suitable for use in environments up to 104°F, this motor features a durable 56C frame and is designed for continuous duty cycles. Its compact size and robust construction make it an excellent choice for a wide range of industries, including manufacturing, material handling, and food processing.
Top product features:
- Three Phase Design
- Continuous Duty Cycle
- Thermal Protection with T-Stat
Top product applications:
- Conveyor Systems
- Material Handling Equipment
- Pumps and Pumping Systems
Vector Motor, Three Phase, Motor Design Three-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.4/1.2 A, 56C Frame, Torque 2.25 ft-lb, Max. Speed 3,600 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 9.12
- Package Weight: 38.00
Product info last updated on March 24, 2026 5:56pm UTC
Category: Motors
