Vector Motor, 1.52 lb-ft, 1/2 HP, 230/460 V MPN:056H17E5303
Vector Motor, 1.52 lb-ft, 1/2 HP, 230/460 V

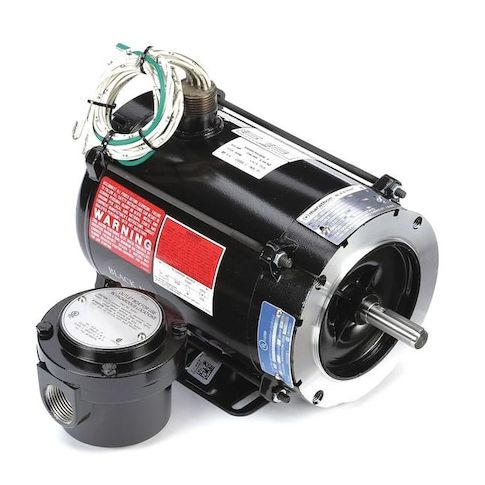

This 1/2 HP, three-phase vector motor from Leeson is designed for high-performance applications that require precise control and efficiency. With a nameplate RPM of 1,725 and a speed range of 1,000:1, this motor can handle a wide range of tasks. Suitable for use in industrial settings, it offers benefits such as reduced energy consumption and increased productivity. Its compact design and CW/CCW rotation make it ideal for use in manufacturing, material handling, and other applications where space is limited. With a continuous duty cycle and NEMA Design A, this motor is built to last and provide reliable performance in demanding environments.
Top product features:
- Three-phase motor design
- Torque of 1.52 lb-ft
- Speed range of 1,000:1
Top product applications:
- Conveyor Systems
- Pumps and Compressors
- Packaging Machinery
Vector Motor, Three Phase, Motor Design Three-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.6/0.8 A, 56C Frame, Torque 1.52 ft-lb, Max. Speed 3,600 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 9.12
- Package Weight: 31.00
