Vector Motor, 0.75 lb-ft, 1/4 HP, 230/460 V MPN:056H17E5301

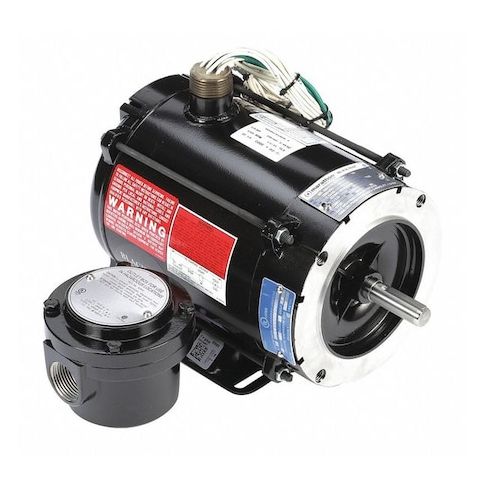

Vector Motor, 0.75 lb-ft, 1/4 HP, 230/460 V
This 1/4 HP three-phase Vector Motor from Leeson is designed for high-torque applications, delivering 0.75 lb-ft of torque and a nameplate RPM of 1,725. With a speed range of 1,000:1 and a maximum speed of 3,600 RPM, this motor is ideal for use in industrial settings where continuous operation is required. Its compact design and high efficiency make it suitable for applications such as conveyor systems, pumps, and fans. The motor's durable construction and thermal protection ensure reliable operation in demanding environments, making it a reliable choice for industries that require high-performance motors.
Top product features:
- Three phase operation
- Continuous duty cycle
- Torque output of 0.75 ft-lb
Top product applications:
- Food Processing Equipment
- Packaging Machinery
- Conveyor Systems
Vector Motor, Three Phase, Motor Design Three-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.1/0.55 A, 56C Frame, Torque 0.75 ft-lb, Max. Speed 3,600 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 10.88
- Package Height: 9.75
- Package Weight: 26.00
Product info last updated on April 15, 2026 5:47am UTC
Category: Motors
