Washdown Brake Motor, 1 HP, 1740 RPM MPN:122193.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4242220

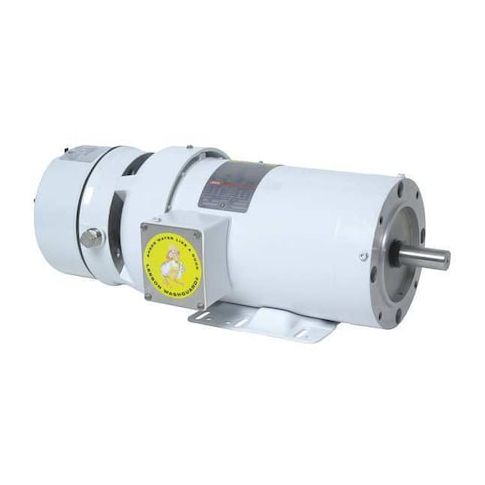

Washdown Brake Motor, 1 HP, 1740 RPM
The Leeson Washdown Brake Motor is a reliable and efficient solution for demanding industrial applications. Designed for three-phase use, this 1 HP motor operates at 1740 RPM and can be used at 230/460V AC or 208V. Its robust design and totally enclosed non-ventilated enclosure make it perfect for harsh environments, such as washdown areas in food processing, chemical plants, and other industries. With a continuous duty cycle and NEMA Design B rating, this motor provides consistent performance and long lifespan. Its compact size and removable base make it easy to install and maintain, ensuring minimal downtime and maximum productivity.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure design for protection from dust and moisture
- Continuous duty cycle for uninterrupted operation
- 1 HP output at 1740 RPM for efficient power delivery
Top product applications:
- Water Treatment Plants
- Pulp and Paper Mills
- Food and Beverage Processing
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8/1.4 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.69
- Package Width: 10.63
- Package Height: 11.25
- Package Weight: 45.00
Product info last updated on February 19, 2026 5:06am UTC
Category: Motors
