Washdown Brake Motor, 1-1/2 HP, 1740 RPM MPN:122195.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4242205

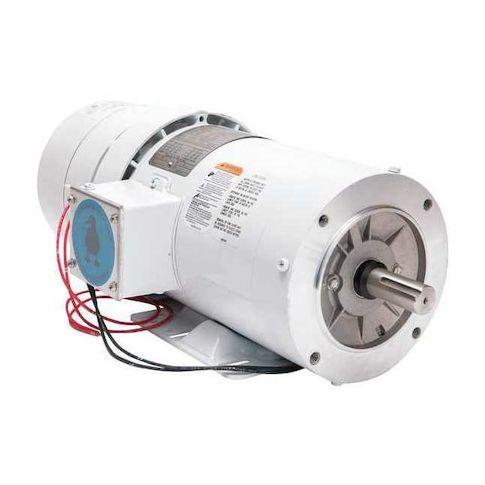

Washdown Brake Motor, 1-1/2 HP, 1740 RPM
The Leeson Washdown Brake Motor is a reliable and efficient solution for applications requiring a high level of cleanliness and protection from moisture. Designed for continuous use in harsh environments, this 1-1/2 HP motor operates at 1740 RPM and features a totally enclosed fan-cooled (TEFC) design to prevent dust and water ingress. Suitable for use in washdown areas, food processing plants, and pharmaceutical facilities, this motor provides a safe and durable solution for applications where cleanliness is paramount. Its compact design and removable base make installation and maintenance easy.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and protection from the environment.
- Three-Phase motor design for efficient and reliable operation.
- Continuous duty cycle for sustained performance under heavy loads.
Top product applications:
- Chemical Processing Plant
- Water Treatment Facility
- Food Processing Plant
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.90
- Package Width: 10.90
- Package Height: 11.30
- Package Weight: 54.10
Product info last updated on February 15, 2026 3:14pm UTC
Category: Motors
