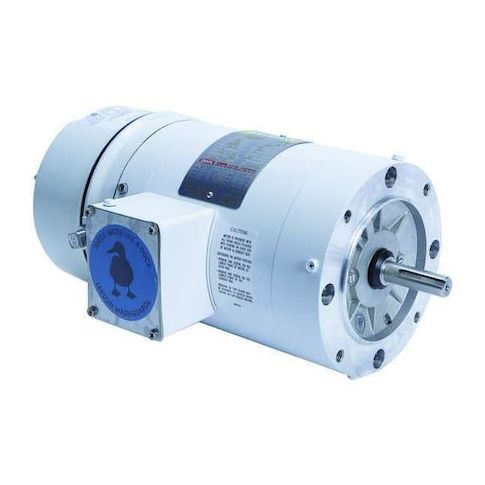

Washdown Brake Motor, 2 HP, 1740 RPM MPN:122196.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4242141
Washdown Brake Motor, 2 HP, 1740 RPM
The Leeson Washdown Brake Motor is a reliable and efficient solution for applications that require a high level of durability and resistance to washdown environments. This 2 HP, 1740 RPM motor is designed for continuous duty cycles and can operate at 208V, making it ideal for use in food processing, pharmaceutical, and other industries where cleanliness is paramount. Its totally enclosed fan-cooled design and NEMA Design C rating ensure long motor life and reduced maintenance costs. With its compact size and CW/CCW shaft rotation, this motor is perfect for a wide range of applications, including conveyor systems, pumps, and mixers.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and dust-free operating environment.
- Usable at 208V for flexibility in installation and compatibility with different power systems.
- Continuous Duty Cycle allows for uninterrupted operation without overheating or reduced performance.
Top product applications:
- Food Processing Equipment
- Packaging Machinery
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design C, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.30
- Package Width: 11.60
- Package Height: 11.20
- Package Weight: 58.30
Product info last updated on February 15, 2026 3:13pm UTC
Category: Motors
