Washdown Motor, 1/3 HP, Face, 10-3/8 in. L MPN:114311.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4242071

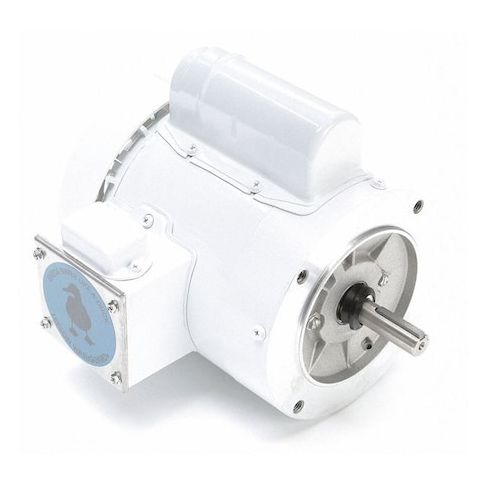

Washdown Motor, 1/3 HP, Face, 10-3/8 in. L
This 1/3 HP washdown motor from Leeson is designed for harsh environments and demanding applications. With a totally enclosed fan-cooled design and a high service factor of 1.15, it provides reliable operation in wet or corrosive conditions. Suitable for use in washdown areas, breweries, food processing plants, and other industries where high cleanliness is essential. Its single-phase, capacitor-start design and NEMA Design B rating ensure efficient and quiet operation. With a continuous duty cycle and a wide range of voltage options, this motor is a versatile solution for various applications, including pumps, conveyors, and mixers.
Top product features:
- Totally Enclosed Fan Cooled design provides protection from dust and liquids
- Has a single phase motor design with a capacitor-start configuration
- Operates at a speed of 1,725 RPM
Top product applications:
- Food Processing Equipment
- Pump and Blower Applications
- Water Treatment Plants
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.4/3.2 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 11.00
- Package Height: 11.30
- Package Weight: 23.05
Product info last updated on March 26, 2026 3:07am UTC
Category: Motors
