Washdown Motor, 3/4 HP, Face, 11-3/8 in. L MPN:114315.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4242038

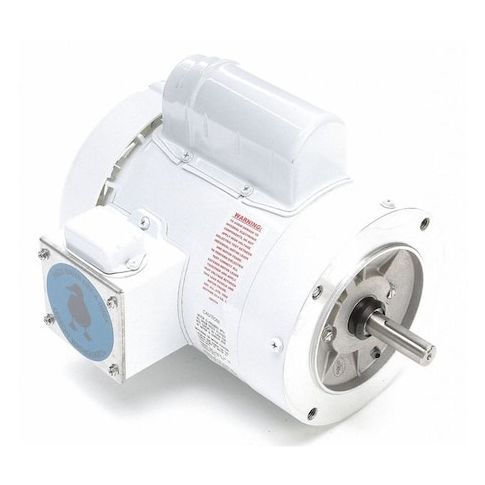

Washdown Motor, 3/4 HP, Face, 11-3/8 in. L
The Leeson Washdown Motor is a reliable and efficient solution for a variety of applications. With its 3/4 HP, 1,725 RPM, and single-phase design, this motor is perfect for use in harsh environments and can withstand temperatures up to 40 degrees C. Its totally enclosed fan-cooled design and NEMA Design B rating ensure long-lasting performance and protection from dust and moisture. Suitable for continuous duty cycles, this motor is ideal for use in industrial settings, such as food processing, chemical plants, and more, where a washdown motor is necessary to ensure cleanliness and safety.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Motor Service Factor of 1.15 for increased power handling and efficiency
- Nameplate RPM of 1,725 for high-speed operation and increased productivity
Top product applications:
- Industrial laundry equipment
- Washing machine for heavy-duty commercial use
- Food processing machinery
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.8/5.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 10.90
- Package Height: 11.40
- Package Weight: 29.75
Product info last updated on February 3, 2026 8:06pm UTC
Category: Motors
