Washdown Motor, 1 HP, Face, 12-1/8 in. L MPN:114317.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4242010

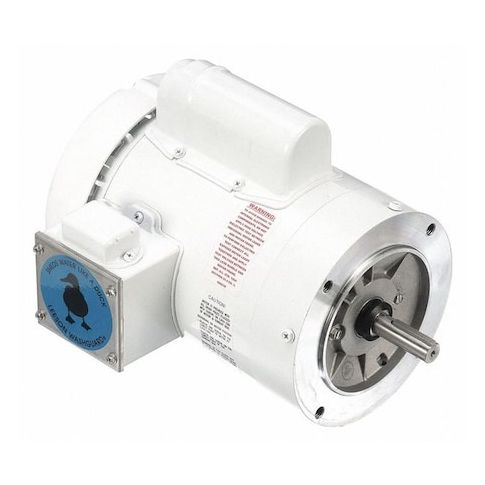

Washdown Motor, 1 HP, Face, 12-1/8 in. L
This 1 HP washdown motor is designed for use in harsh environments, featuring a totally enclosed fan-cooled design and a Class F insulation rating for operation in temperatures up to 40°C. With a single-phase capacitor-start design, it provides efficient operation and reliable performance. Suitable for use in applications such as food processing, pharmaceutical manufacturing, and chemical processing, this motor offers a cost-effective solution for continuous duty cycles. Its compact size and robust construction make it an ideal choice for a variety of washdown applications, ensuring reliable operation and extended equipment lifespan.
Top product features:
- Totally Enclosed Fan Cooled motor enclosure design
- Capacitor-start motor design
- Continuous duty cycle capability
Top product applications:
- Pumps and water treatment systems
- Industrial laundry equipment
- Food processing machinery
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.8/6.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.10
- Package Width: 11.00
- Package Height: 11.40
- Package Weight: 32.30
Product info last updated on March 2, 2026 11:31pm UTC
Category: Motors
