Washdown Motor, Face/Base, 10-7/8 in. L MPN:112527.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4241977
Washdown Motor, Face/Base, 10-7/8 in. L

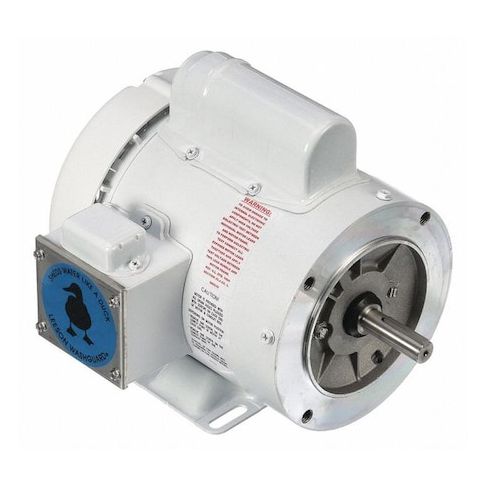

This Leeson Washdown Motor is designed for use in harsh environments, featuring a totally enclosed fan-cooled design and a durable 56C frame. With a single-phase capacitor-start motor, it provides reliable operation in a variety of applications, including food processing, pharmaceutical manufacturing, and chemical handling. The motor's continuous duty cycle and NEMA Design B rating ensure efficient performance in demanding conditions. Its compact size and lightweight design make it easy to install and maintain, while its 1,725 RPM speed and 1/2 hp power rating provide the perfect balance of speed and torque for a range of washdown applications.
Top product features:
- Totally Enclosed Fan Cooled motor design for protection from dust and water
- Capacitor-Start motor design for efficient starting and running
- Continuous duty cycle for reliable operation under heavy loads
Top product applications:
- Industrial Laundry Equipment
- Food Processing Machinery
- Chemical Plant Equipment
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8/4.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 10.80
- Package Height: 11.40
- Package Weight: 25.40
Product info last updated on January 19, 2026 9:46pm UTC
Category: Motors
