Washdown Motor, Face/Base, 11-5/8 in. L MPN:112528.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4241968

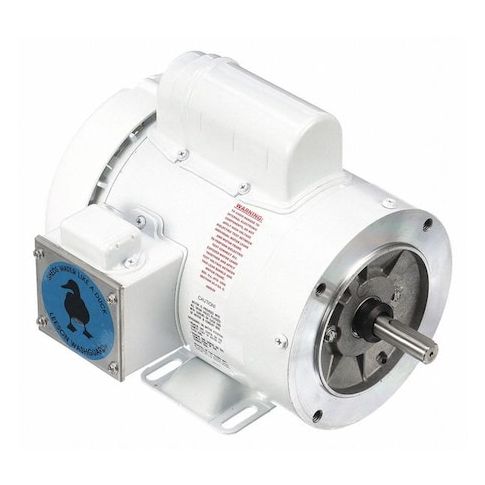

Washdown Motor, Face/Base, 11-5/8 in. L
This high-performance Washdown Motor from Leeson is designed for demanding applications in harsh environments. With a 3/4 hp capacity and 1,725 RPM, it provides reliable operation in a wide range of settings. Suitable for use in washdown areas, food and beverage processing, and other industries where cleanliness and efficiency are paramount. The motor's totally enclosed fan-cooled design and Class F insulation ensure long lifespan and durability. Its compact size and removable base make it easy to install and maintain. With a continuous duty cycle and 1.15 service factor, this motor delivers consistent performance and reliability in high-usage applications.
Top product features:
- Totally Enclosed Fan Cooled design provides improved protection against dust and moisture.
- Motor shaft rotation is available in both clockwise and counterclockwise directions.
- Nameplate RPM of 1,725 provides a high-speed operation for demanding applications.
Top product applications:
- Water Treatment and Processing
- Pump Applications
- Wastewater Treatment
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.8/5.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 10.80
- Package Height: 11.50
- Package Weight: 30.40
Product info last updated on February 13, 2026 1:06pm UTC
Category: Motors
