WashdownMotor, 3/4hp, 3450RPM, 115/230VAC MPN:113582.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4241959

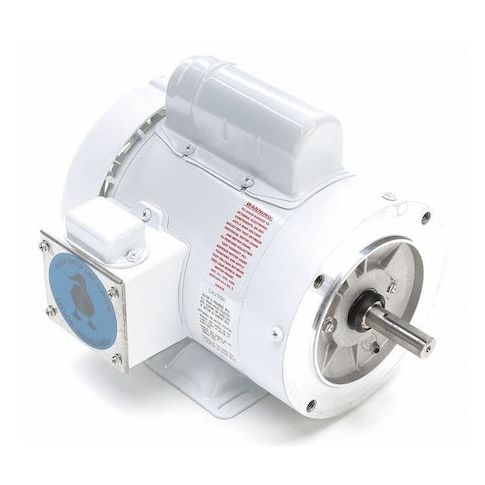

WashdownMotor, 3/4hp, 3450RPM, 115/230VAC
This Leeson Washdown Motor is designed for use in harsh environments where high pressure washdowns are common. Its totally enclosed fan-cooled design and NEMA Design B rating ensure reliable operation in demanding applications. With a single-phase, capacitor-start motor design, this motor provides efficient and quiet operation. Suitable for use in applications such as food processing, pharmaceutical manufacturing, and other industries where high pressure washdowns are required. Its continuous duty cycle and 1.15 service factor make it an ideal choice for applications that require high reliability and uptime.
Top product features:
- Totally Enclosed Fan Cooled motor enclosure design
- Single Phase motor design with Capacitor-Start
- Continuous duty cycle operation
Top product applications:
- Food Processing Equipment
- Water Treatment Plants
- Pumps and Pumping Systems
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.0/5.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 11.20
- Package Height: 11.90
- Package Weight: 29.85
Product info last updated on March 22, 2026 3:08pm UTC
Category: Motors
