Washdown Motor, 1 HP, Face/Base, 12-1/8in.L MPN:112529.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4241931

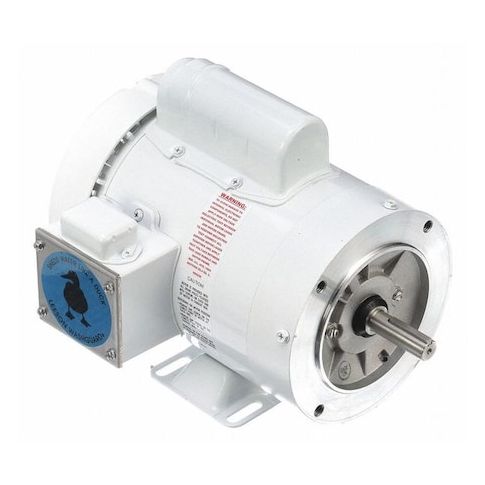

Washdown Motor, 1 HP, Face/Base, 12-1/8in.L
This 1 HP washdown motor from Leeson is designed for use in harsh environments where water and dust are present. Its totally enclosed fan-cooled design and NEMA Design B rating ensure reliable operation even in extreme conditions. The motor's single-phase, capacitor-start design provides efficient operation and long lifespan. Its continuous duty cycle and 1.15 service factor make it suitable for applications such as food processing, pharmaceutical manufacturing, and chemical handling. With a 1,725 RPM nameplate speed and 56C frame size, this motor is a versatile solution for a wide range of washdown applications.
Top product features:
- Totally Enclosed Fan Cooled design
- Single Phase operation
- Capacitor-Start motor design
Top product applications:
- Food Processing
- Pump and conveyor systems in the food industry
- Laundry and dry cleaning equipment
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.8/6.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 11.00
- Package Height: 11.60
- Package Weight: 29.03
Product info last updated on February 23, 2026 5:24pm UTC
Category: Motors
