Washdown Motor, Face/Base, 12-3/8 in. L MPN:113584.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4241925

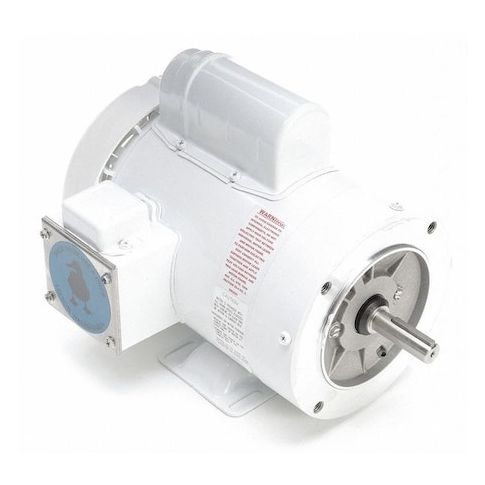

Washdown Motor, Face/Base, 12-3/8 in. L
The Leeson Washdown Motor is a reliable and efficient solution for applications requiring high-torque performance in harsh environments. Its single-phase design and capacitor-start motor make it ideal for use in washdown areas, food processing, and other industries where cleanliness is crucial. With a continuous duty cycle and totally enclosed fan-cooled design, this motor can withstand extreme temperatures and exposure to water and chemicals. Its compact size and removable base make installation and maintenance easy, while its high service factor ensures reliable operation even in demanding conditions. Perfect for applications requiring high performance and durability.
Top product features:
- Single Phase operation
- Motor Design Capacitor-Start
- Totally Enclosed Fan Cooled Enclosure
Top product applications:
- Water Treatment Plant
- Food Processing Plant
- Pharmaceutical Manufacturing Facility
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 17.0/8.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 11.00
- Package Height: 12.00
- Package Weight: 36.00
Product info last updated on March 11, 2026 10:59am UTC
Category: Motors
