Washdown Motor, Face/Base, 13-3/8 in. L MPN:113300.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4241916

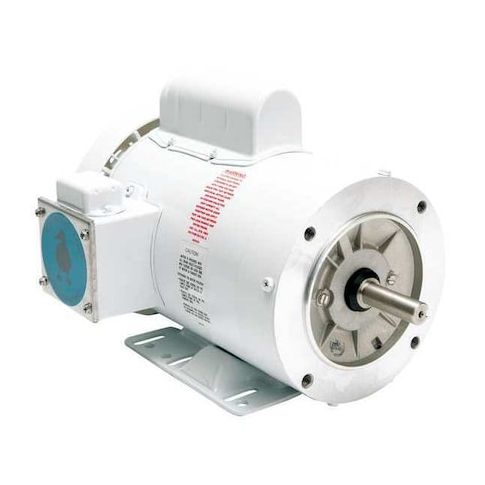

Washdown Motor, Face/Base, 13-3/8 in. L
The Leeson Washdown Motor is a reliable and efficient solution for applications requiring a single-phase, capacitor-start motor. With a continuous duty cycle and NEMA Design B rating, this motor is suitable for use in washdown environments, such as food processing and manufacturing facilities. Its totally enclosed fan-cooled design provides protection from dust and water, while its 1.15 service factor ensures reliable operation. The motor's 1.5 HP rating and 1,725 RPM make it ideal for applications requiring moderate power and speed, such as pumps, conveyors, and mixers. Its compact design and CE compliance make it a versatile choice for a wide range of industries.
Top product features:
- Totally Enclosed Fan Cooled motor enclosure design
- Single Phase motor design with Capacitor-Start design
- Continuous duty cycle operation
Top product applications:
- Food Processing Equipment
- Pump Stations
- Washing Machines
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 19.0/9.5 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 11.20
- Package Height: 11.80
- Package Weight: 43.60
