Washdown Motor, 1 HP, Face/Base, 3-Phase MPN:116780.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4241791

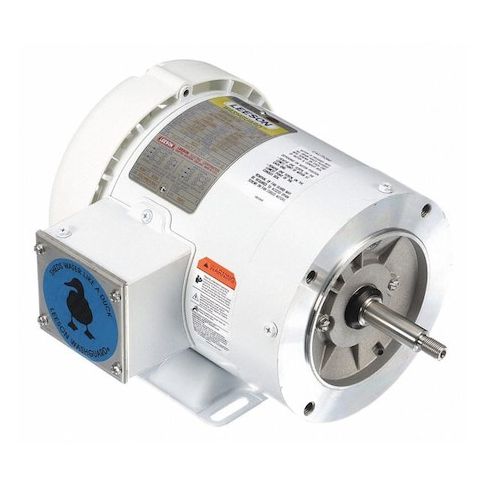

Washdown Motor, 1 HP, Face/Base, 3-Phase
The Leeson Washdown Motor is a reliable and efficient solution for demanding applications. Suitable for use in harsh environments, this 1 HP motor operates at 3,450 RPM and is designed for continuous duty cycles. Its totally enclosed fan-cooled design ensures optimal performance in high-temperature conditions, up to 40°C. The motor's NEMA Design B rating and 1.15 service factor make it ideal for washdown applications in food processing, pharmaceutical, and other industries. Its compact size and low maintenance requirements also make it a cost-effective choice for a variety of applications, including pumps, conveyors, and mixers.
Top product features:
- Three-phase design
- Totally enclosed fan-cooled motor enclosure
- Continuous duty cycle
Top product applications:
- Clean Room Equipment
- Food Processing Machinery
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56J Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 10.80
- Package Height: 11.50
- Package Weight: 24.25
Product info last updated on February 25, 2026 5:08pm UTC
Category: Motors
