Washdown Motor, 2 HP, Face/Base, 3-Phase MPN:119461.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4241785

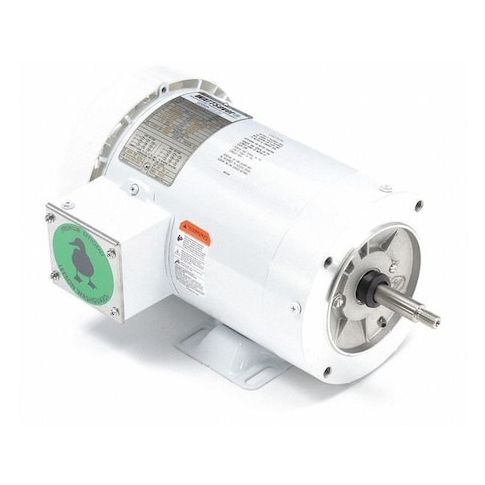

Washdown Motor, 2 HP, Face/Base, 3-Phase
The Leeson Washdown Motor is a reliable and efficient solution for a variety of applications, including food processing, chemical handling, and pharmaceutical manufacturing. Its three-phase design and 2 HP rating make it suitable for demanding tasks, while its totally enclosed fan-cooled enclosure ensures maximum protection against harsh environments. With a nameplate RPM of 3,490 and a service factor of 1.15, this motor delivers consistent performance and durability. Its compact size and removable base make it easy to integrate into existing systems, making it an ideal choice for facilities requiring continuous operation and minimal downtime.
Top product features:
- Totally Enclosed Fan Cooled Enclosure
- Removable Base
- Continuous Duty Cycle
Top product applications:
- Washdown motor used in food processing facilities for equipment such as meat grinders and slicers.
- Washdown motor used in pharmaceutical manufacturing for equipment such as tablet compressors and mixers.
- Washdown motor used in chemical processing for equipment such as pumps and agitators.
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 56J Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 10.70
- Package Height: 11.20
- Package Weight: 44.90
Product info last updated on January 19, 2026 11:29pm UTC
Category: Motors
