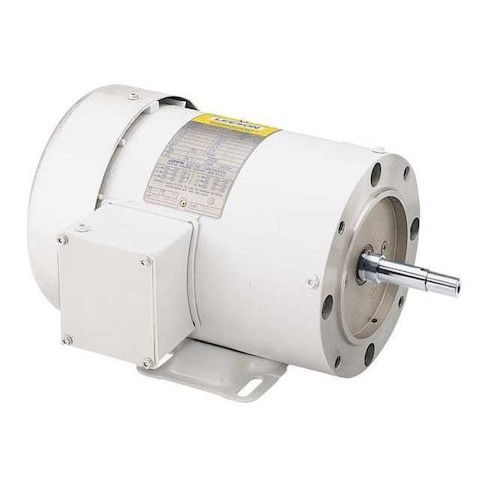

Washdown Motor, 3 HP, Face/Base, 3-Phase MPN:119463.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4241776
Washdown Motor, 3 HP, Face/Base, 3-Phase
This 3 HP, 3-phase washdown motor from Leeson is designed for demanding applications in harsh environments. Its totally enclosed fan-cooled design and NEMA Design B rating ensure reliable performance in washdown and other high-temperature settings. With a continuous duty cycle and 1.15 service factor, this motor can handle heavy loads and withstand frequent start-ups. Its 56J frame and 3,490 RPM nameplate speed make it suitable for various applications, including food processing, pharmaceutical manufacturing, and chemical handling. Its compact size and easy installation make it a valuable addition to any industrial operation.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Continuous duty cycle capability
Top product applications:
- Pump for a chemical processing plant
- Pump for a food processing facility
- Washing machine for a laundry or textile plant
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.0/4.0 A, 56J Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 11.10
- Package Height: 11.40
- Package Weight: 48.10
Product info last updated on February 28, 2026 1:52pm UTC
Category: Motors
