Capacitor-Start General Purpose Motor, 1/2 hp HP, 56C Frame, 115/230V AC Voltage MPN:102864.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G410080989

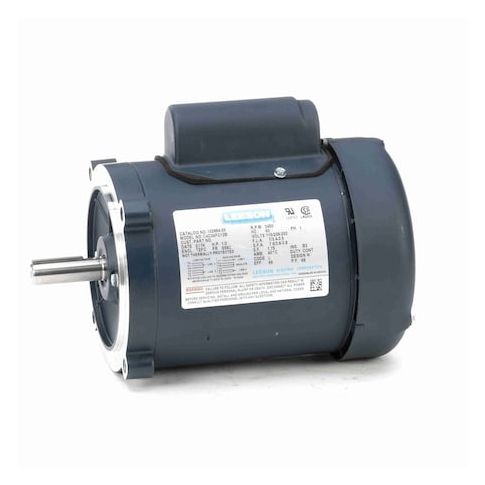

Capacitor-Start General Purpose Motor, 1/2 hp HP, 56C Frame, 115/230V AC Voltage
This 1/2 hp capacitor-start general purpose motor from Leeson is a reliable and efficient solution for a variety of applications. Suitable for use in single-phase systems, it operates at 3,450 RPM and is designed for continuous duty cycles. The motor's totally enclosed fan-cooled design ensures optimal performance in harsh environments, while its 56C frame provides a compact and versatile solution. Ideal for use in industrial settings, the motor is perfect for applications such as conveyor systems, pumps, and fans, where reliability and efficiency are paramount. Its compact size and high power output make it a valuable addition to any industrial operation.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Continuous duty cycle operation for high reliability and long motor life
- CCWSE shaft rotation for compatibility with various mechanical applications
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.0/3.5 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CCWSE
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 8.20
- Package Height: 9.20
- Package Weight: 18.00
- Restricted States: CA
Product info last updated on February 27, 2026 1:19pm UTC
Category: Motors
