Three-Phase Washdown Motor, 1 hp HP, 56HC Frame, 230/460V AC Voltage, 3, 450 RPM Nameplate RPM MPN:191209.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G407353911

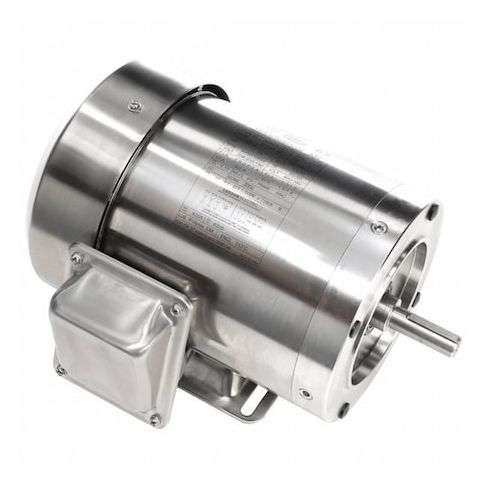

Three-Phase Washdown Motor, 1 hp HP, 56HC Frame, 230/460V AC Voltage, 3, 450 RPM Nameplate RPM
This three-phase washdown motor is designed for use in harsh environments where high-pressure cleaning and sanitizing are required. Its totally enclosed air-over design provides maximum protection against dust, water, and other contaminants. With a 1 hp rating and 3,450 RPM nameplate speed, this motor is suitable for a variety of applications, including food processing, pharmaceutical manufacturing, and chemical processing. Its continuous duty cycle and NEMA Design B rating ensure reliable operation in demanding conditions. The motor's compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing productivity.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed air-over motor enclosure for protection against environmental contaminants
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Food Processing Equipment
- Pulp and Paper Mill Machinery
- Wastewater Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.6/1.3 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.40
- Package Width: 11.50
- Package Height: 10.00
- Package Weight: 38.70
- Restricted States: CA
