WashdownMotor, 5hp, 3520RPMTC, 230/460VAC MPN:194002.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G406626665

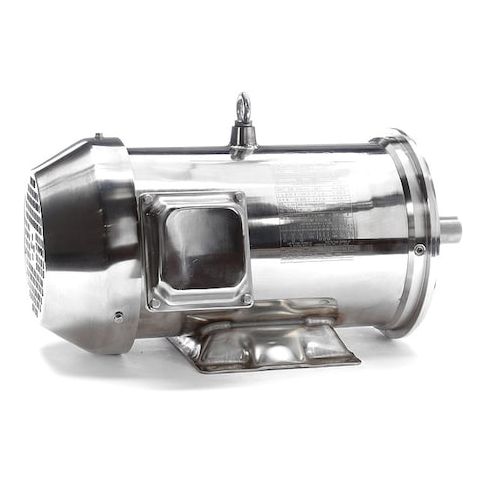

WashdownMotor, 5hp, 3520RPMTC, 230/460VAC
Boost productivity and efficiency in harsh washdown environments with the Marathon 5hp 3520RPMTC Washdown Motor. Designed for continuous operation, this three-phase motor withstands high-pressure washdowns and corrosive substances, ensuring reliable performance in food processing, pharmaceutical, and chemical manufacturing facilities. Its totally enclosed fan-cooled design and Class F insulation provide exceptional protection against extreme temperatures and humidity. With a service factor of 1.15, this motor delivers more power than comparable models, making it ideal for demanding applications such as conveyor systems, pumps, and mixers. Order now and experience the reliability and performance of the Marathon Washdown Motor.
Top product features:
- Totally Enclosed Fan Cooled Design for Dust and Moisture Protection
- Three Phase Motor Design for High Power and Efficiency
- Continuous Duty Cycle Capability for Uninterrupted Operation
Top product applications:
- Food Processing Machinery
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,520 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 11.0/5.5 A, 184TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.60
- Package Width: 14.40
- Package Height: 17.00
- Package Weight: 120.00
Product info last updated on February 2, 2026 8:32am UTC
Category: Motors
